What is DJI Dock 4?

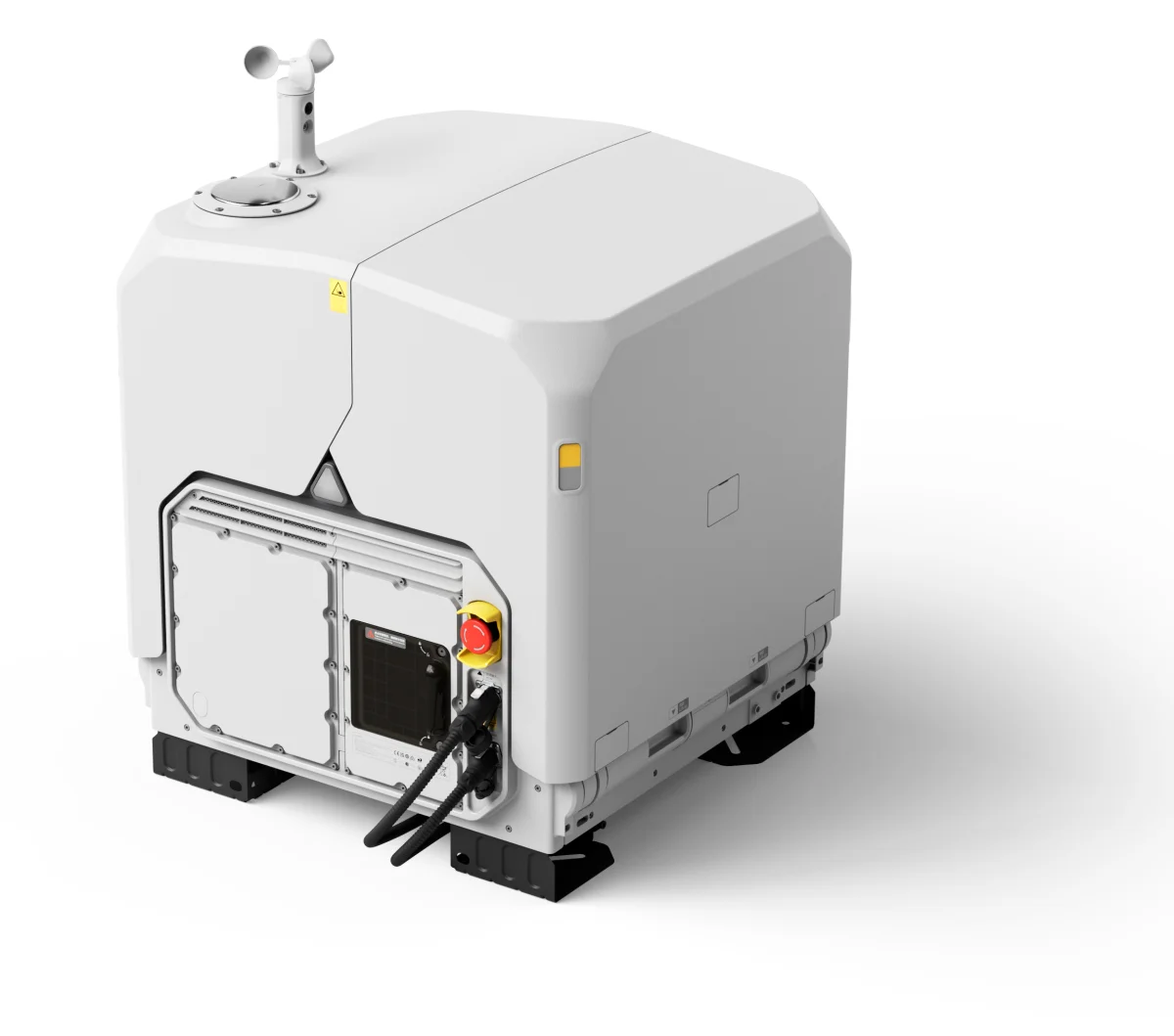

DJI Dock 4 is DJI's first drone-in-a-box with battery swapping, getting the aircraft ready to fly again in about 25 seconds with no waiting to recharge between missions. It works with the DJI Matrice 5TD and DJI O4 Ground Station, with missions and live video managed in DJI FlightHub 2.

Highlights

  • Automatic battery swap in about 25 seconds, with built-in charging (battery swapping + wireless charging)

  • Matrice 5TD: up to 59 min flight time, 21 m/s max speed, 10 km max operating radius

  • All-weather: dock operates from -40°C to 50°C, IP56, landing in winds up to 12 m/s

  • Onboard AI object detection for patrol and drone-first-responder operations

  • Accessories: AL2D spotlight, AS2D loudspeaker and AP1 parachute

Key specifications

  • Dock weight: 66 kg (without batteries or aircraft)

  • Dimensions: cover open 1750×640×550 mm / cover closed 639×640×836 mm

  • Input: 100–240 V AC, 50/60 Hz

  • Battery charging: 27 min per battery, 2 parallel channels

  • Matrice 5TD: 3,050 g max takeoff weight, IP55

Specifications from DJI; lab test figures may differ in real-world use. See the full overview, intro video and all 212 specifications on the DJI Dock 4 page, or contact the 13 STORE Enterprise team for a quotation and installation advice.
